A veneer project. Bolt on LP style.

[Eric Baack]

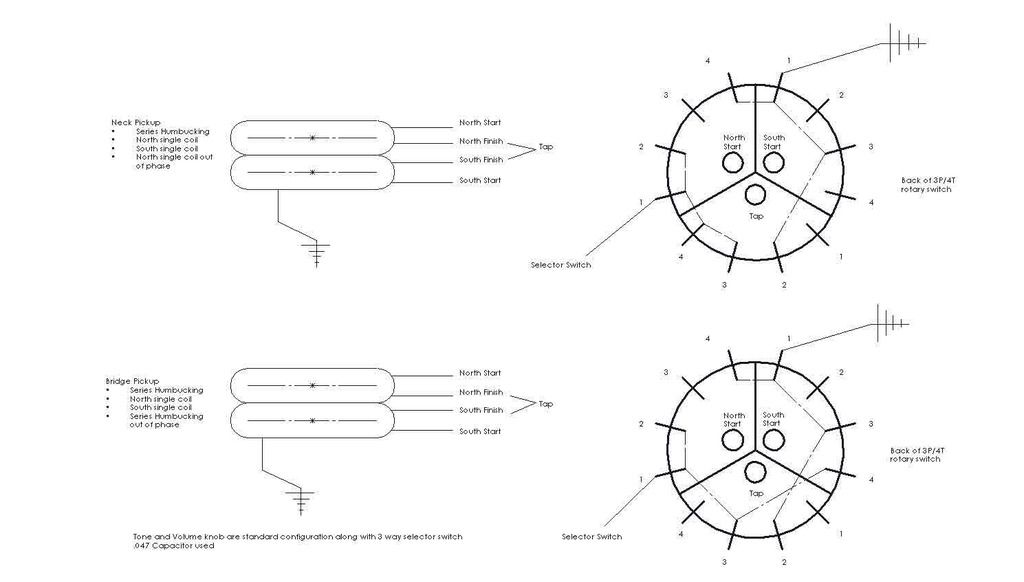

Here's the wiring schematic for the rotary switches

[Eric Baack]

Took some nicer pictures today. That figure really pops at the right angles!

[Gordon Bellerose]

Nicely done! Great color; kind of a faded green, at least in the pictures.

I see you still have to repair the pickup ring screw.
Do you have a good method of repairing that?

Stewmac (I have spent a lot of money there) has a nice small screw rescue kit.
I would not buy the whole kit, just the small screw remover, and the plug cutter. The 3/16" bit can be bought anywhere.
It's a bit pricey, like a lot of things at stewmac, but it works well.
I guess I shouldn't knock them too hard. They must spend a lot of money developing these tools, that are aimed directly at the luthier, and are not available anywhere else.

Link: http://www.stewmac.com/SiteSearch/guita ... 20kit.html

[Eric Baack]

Gonna make a tool to fix it

[Dan Smith]

Looks great, Eric!
I dig the headstock design.

[Eric Baack]

Yeah, kind of my take on the peavey design. with a sharper edge.

[Eric Baack]

Now if I could only find someone who can play decent.....

https://youtu.be/zXtUU89qq7c

https://youtu.be/Vr5kHDrjXOs

[Eric Baack]

Did a small electronics repair on it last night. The single coil out of phase option on the rotary for the neck pickup (now that's a mouth full!) was not soldered, the jumper wire was through the lug but I had forgotten to solder that one so in the clean tones video you can hear where it drops out when I switch to that option. Just a dab of solder and it works great

Now to fix that broken screw sometime....
